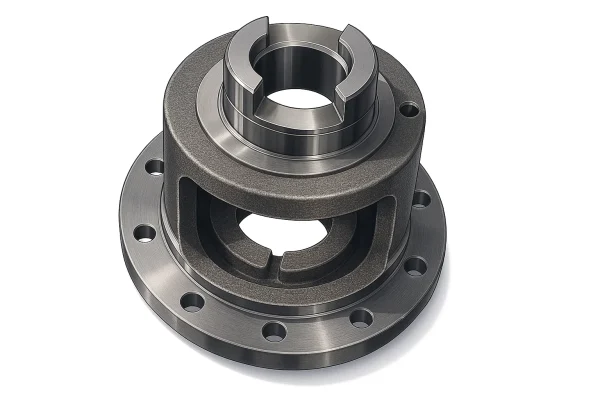

What is a Differential Cage?
The Differential Cage in agricultural machinery, such as tractors and combines, is a vital part of the differential assembly. It houses and supports the internal gears (pinions and side gears) that enable the two drive wheels to rotate at different speeds, especially important during turns and uneven terrain. This mechanism ensures efficient power transmission, traction, and maneuverability on challenging farm fields.
Key Features of Differential Cage
Heavy-Duty Construction
Made from high-strength forged steel or alloy, designed to withstand high torque and shock loads encountered in agricultural operations.
Precision Machining
Accurately machined surfaces for smooth gear engagement and minimal wear, ensuring efficient power transfer.
Integrated Gear Housing
Encases the planetary gears, pinions, and side gears that manage differential motion within a single compact unit.
Lubrication Channels
Designed with internal pathways for oil circulation, reducing friction and heat buildup during operation.
Seal-Ready Design
Includes grooves and seating surfaces for oil seals and gaskets to maintain lubrication and prevent contamination ingress.
Enables Differential Action: Allows the two drive wheels to rotate at different speeds, especially useful during turns to reduce tire wear and improve traction.
Torque Distribution: Transfers engine power evenly to both axle shafts, ensuring balanced effort even on uneven ground.
Structural Support: Houses and secures all differential gears and related components in proper alignment.
Heat Dissipation: Supports lubrication flow, which helps dissipate frictional heat generated by moving gears.
Durability Enhancement: Protects internal gears from external contaminants and mechanical damage, extending service life.
Facilitates Maintenance: Modular design simplifies inspection and replacement of internal differential gear components.
Improves Maneuverability: Enhances vehicle control and stability on varying agricultural terrain by enabling smooth turns.
